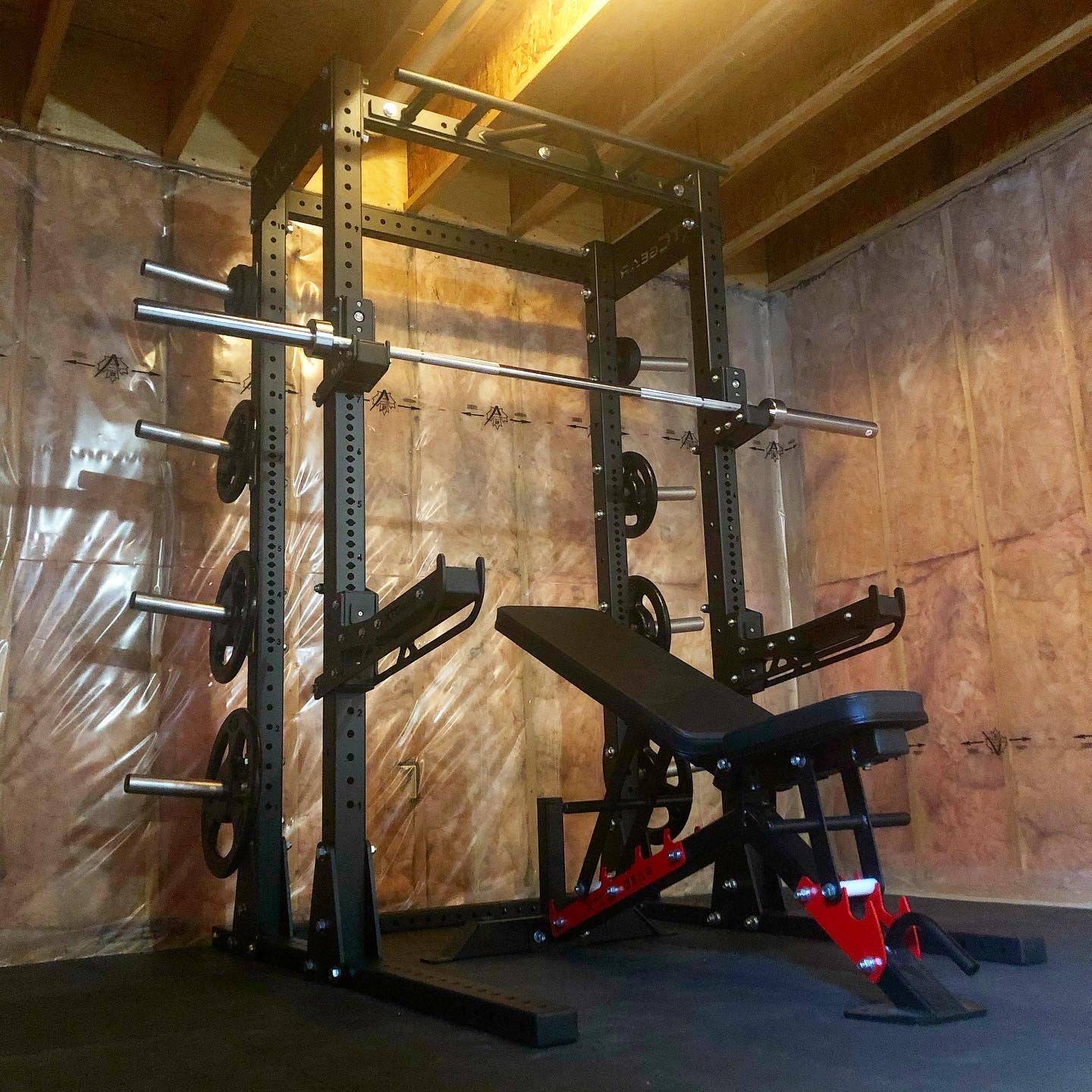

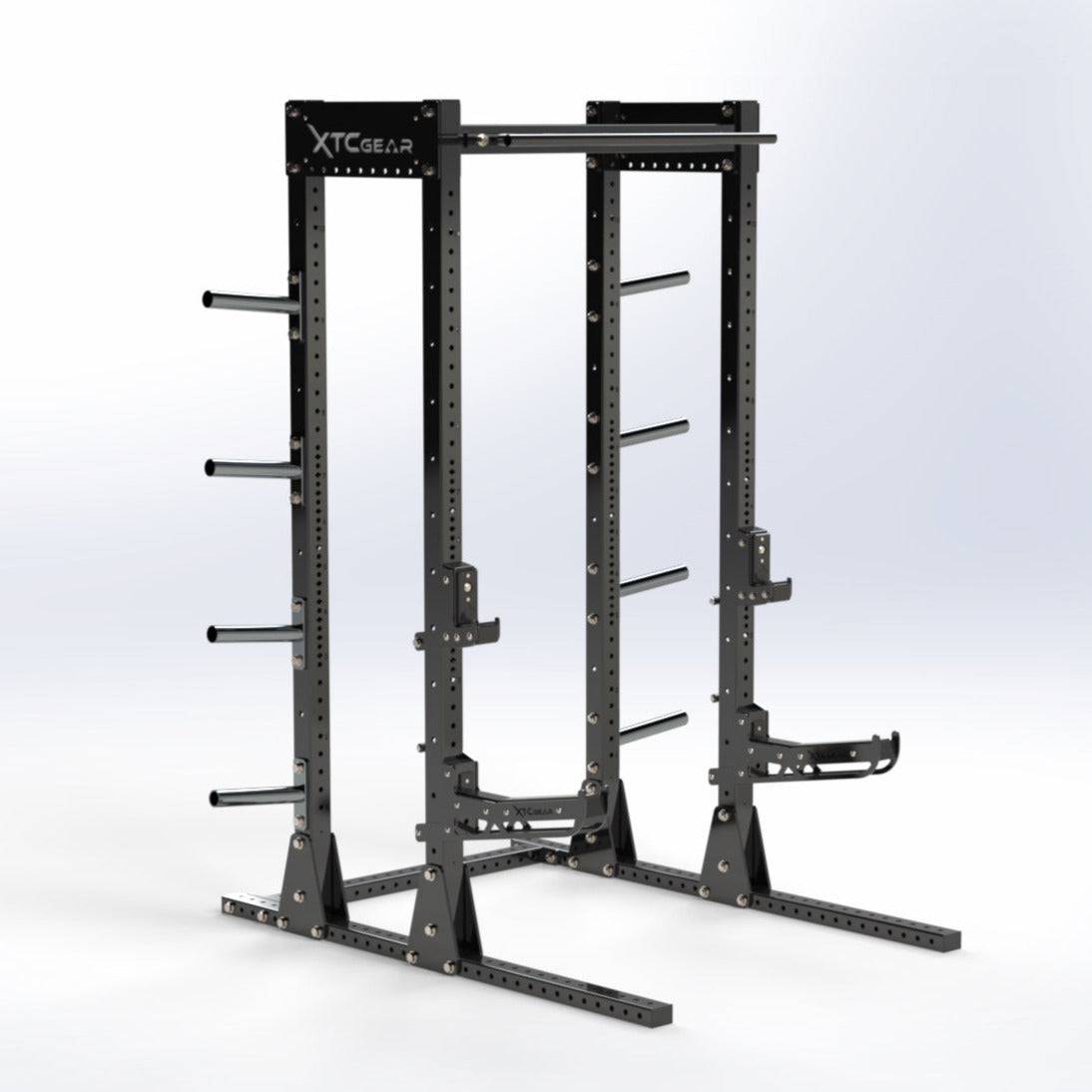

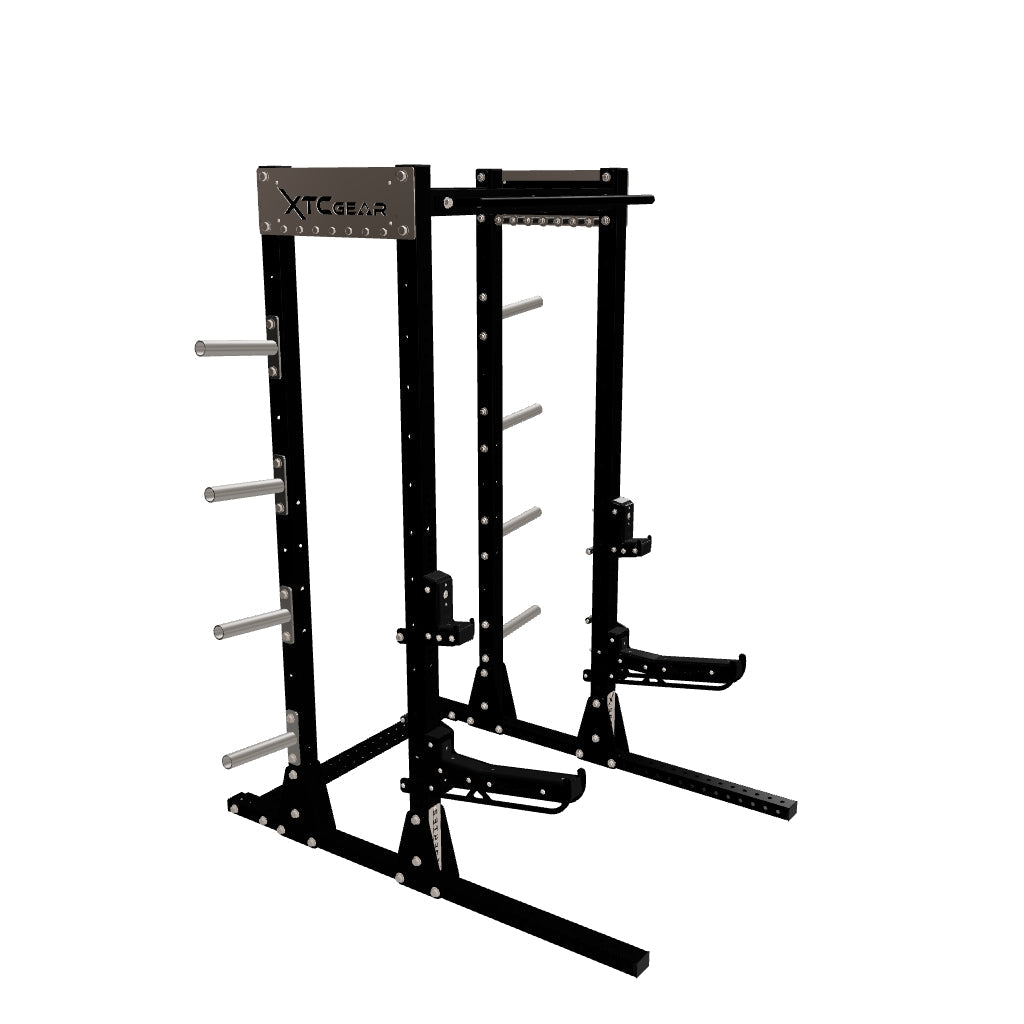

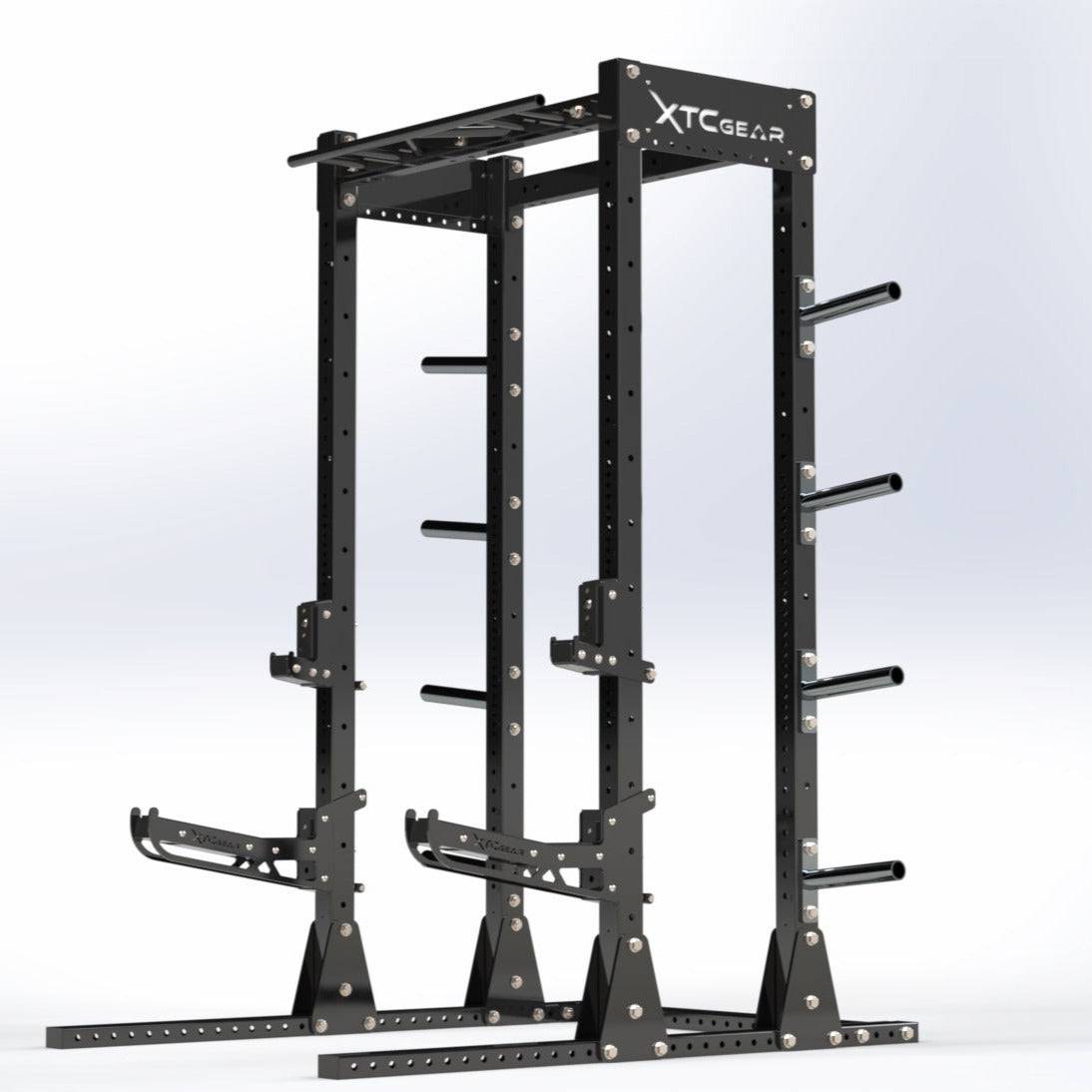

The tallest and most equipped of all our racks X-Series products. This rack features premium A500, 11-gauge, 3" x 3" Canadian Steel uprights, laser-cut with 5/8" holes spaced 1" & 2" (West Side Hole Spacing), Oversized Heavy-duty 0.25" sheet metal bracing, and long robust A500 11-gauge 2" x 3" tube base frame with pre-cut floor mount holes for those who wish to anchor their racks. Not only is this rack built like a tank, it's easy to use - equipped with Turn & Lock J-Hooks that are lined with UHMW, forward facing spotter arms, and angled Stainless Steel Plate Pegs for convenient plate storage.

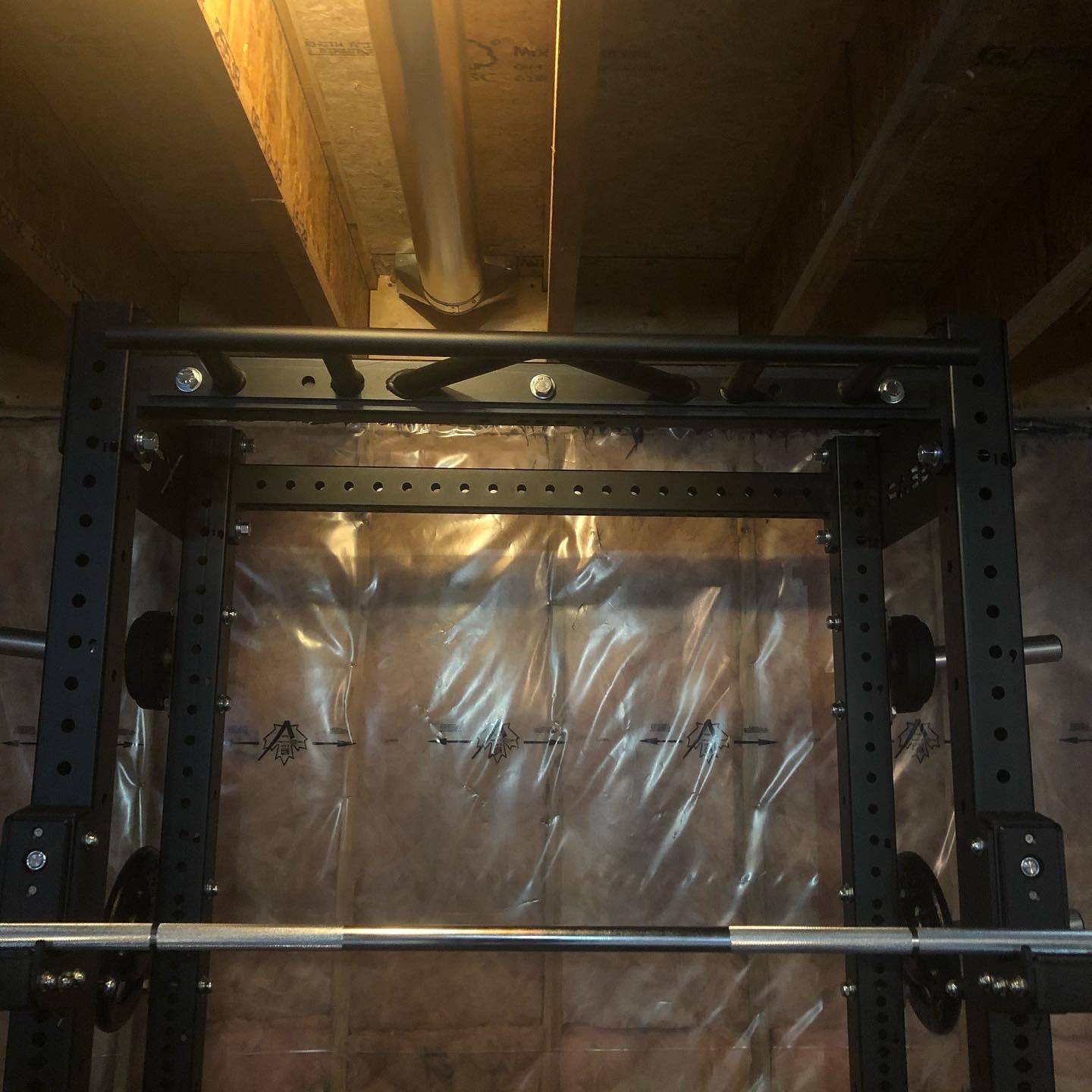

This taller rack is equipped with a pull-up bar, making it highly versatile. Great for Squat, Bench Press, Clean-pulls, floor press, shoulder press, standing overhead press, pull-ups and more.
SEE BELOW FOR MORE DETAILS.
Barbell, Bench, Weights SOLD SEPARATE
Gear Specs
|
MODEL |
X-Series Half Rack - HR92 |
|
SKU |
XS-HR92-MGP |
|
SERIES |
X-Series |
|
STEEL TUBE SIZE |
3" x 3" |
|
STEEL GAUGE |
11 Gauge |
|
HOLE SIZES |
5/8" |
|
HOLE SPACING |
1" & 2" |
|
NUMBERS |
Yes |
|
NUMBER SPACING |
Every 5 Holes
|
|
CHIN-UP BAR |
YES, Multi-Grip |
|
WEIGHT CAPACITY |
1000Lb |
|
DIMENSIONS |
72" x 52" x 92" (Custom Also Available) |
|
RACK WEIGHT |
VARIES BASED ON HEIGHT & DEPTH |
|
FRAME WARRANTY |
LIFETIME |
|
J-HOOK WARRANTY |
1 YEAR |
|
CHIN-UP BAR WARRANTY |
3 YEAR |
|
COLOR |
STOCK BLACK |
|
MADE IN |
CANADA |
|
ASSEMBLED DIMENSIONS (L x W x H) |
72" x 52" x 92" (Custom Also Available) |
|
PRODUCTION ETA |
6-9 Week |
Series
The X-Series
Meet the X-Series, XTC Gear's most poplar line of equipment. Tailored for commercial facilities who demand the best, but don't want to break the bank. Our X-Series products have been installed in some of the most demanding facilities in the country including CrossFit Boxes, Military Bases, Police Stations and Academies, Universities and schools. Proudly Canadian Made equipment with attention to detail. Our equipment is designed and fabricated in house using locally sourced Structural Canadian Steel. All steel parts are processed using the most innovative and advanced manufacturing techniques from CNC machining to Flat Sheet and Tube Laser Cutting. We maximize material efficiency, repeatability of our processes to make our gear as affordable as possible. We have taken a unique design approach to limit the number of welds making our gear more modular and likely to fit into any space while being easy to assemble.
Manuals
X-Series J-Hook - Assembly Guide
