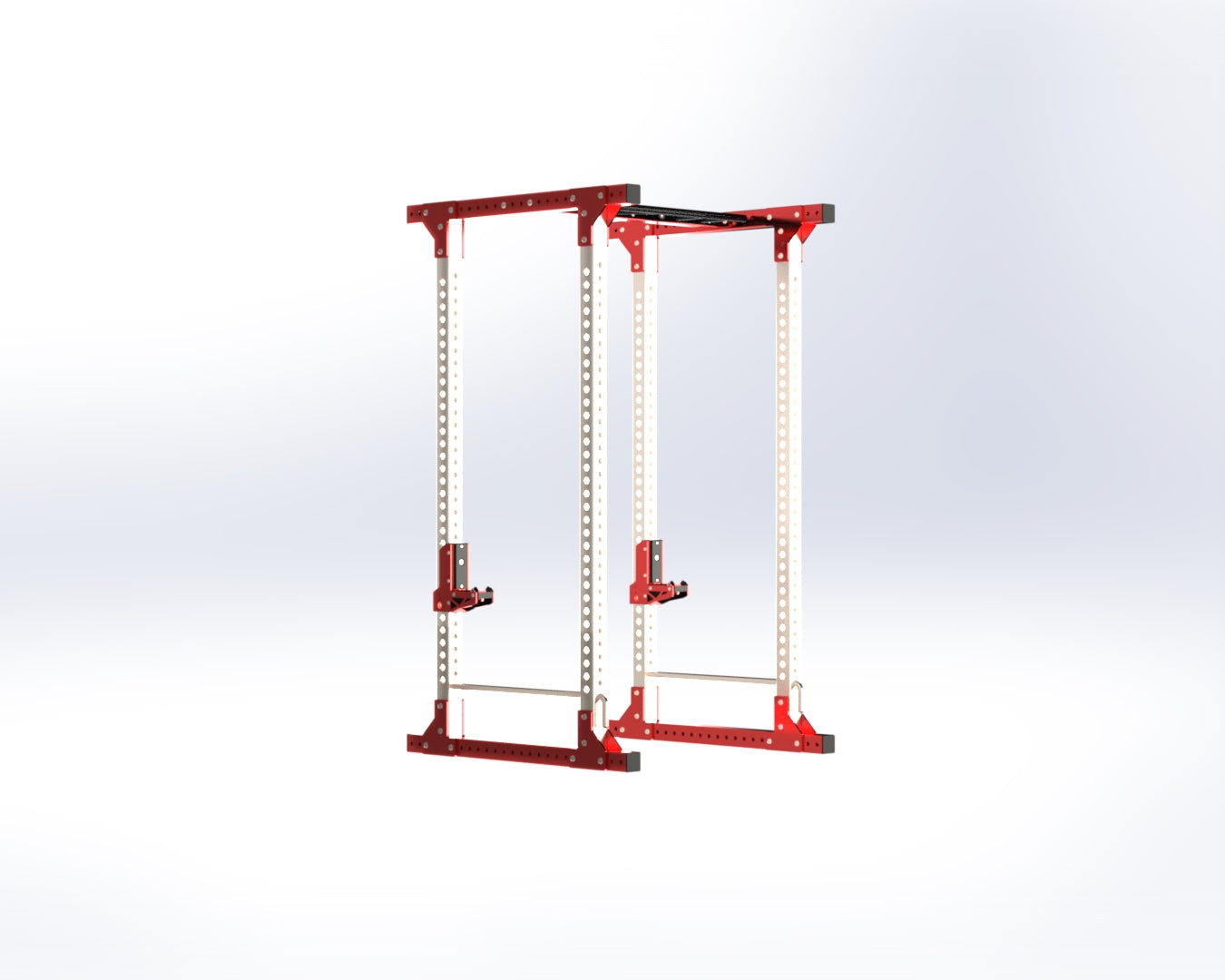

X-Series Power Rack - P4
Our best selling line of equipment, now with an all new look, and improved performance. More adjustment points, larger 3" x 3" frame and bigger J-Hooks all in a compact four-by-four foot base. Available in several heights (84", 92"). This rack features premium A500, 11-gauge, 3" x 3" Canadian Steel uprights, laser-cut with 5/8" holes spaced 1" & 2" (West Side Hole Spacing), Oversized Heavy-duty 0.25" sheet metal bracing, and robust A500 11-gauge 2" x 3" tube base frame with pre-cut floor mount holes for those who wish to anchor their racks. Not only is this rack built like a tank, it's easy to use - equipped with Turn and Lock J-Hooks that are lined with Natural UHMW to protect your bar's knurling.
Includes Pin/Pipe Spotters.
SEE BELOW FOR MORE DETAILS.
Barbell, Bench, Weights SOLD SEPARATE
X1 Power Rack is Made To Order
Gear Specs
|
MODEL |
X-Series Power Rack - X1 |
|
SKU |
XS-X1 |
|
SERIES |
X-Series |
|
STEEL TUBE SIZE |
3" x 3" & 2" x 3" |
|
STEEL GAUGE |
11 and 7 Gauge |
|
HOLE SIZES |
1" |
|
HOLE SPACING |
2" |
|
NUMBERS |
YES |
|
NUMBER SPACING |
Every 5 Holes |
|
CHIN-UP BAR |
YES |
|
WEIGHT CAPACITY |
1000Lb |
|
DIMENSIONS (OVERALL) |
75.5" (Width) x 76.5 (Depth) x 96" (Height) 49.5" (Width) x 50.5 (Depth) x 96" (Height) |
|
RACK WEIGHT |
VARIES BASED ON HEIGHT & DEPTH |
|
|
Available in 42" and 43" |
|
FRAME WARRANTY |
LIFETIME |
|
J-HOOK WARRANTY |
3 YEAR |
|
CHIN-UP BAR WARRANTY |
NA |
|
COLOR |
STOCK BLACK |
|
MADE IN |
CANADA |
|
PRODUCTION ETA |
Made to Order |
Series
The X-Series
Meet the X-Series, XTC Gear's most poplar line of equipment. Tailored for commercial facilities who demand the best, but don't want to break the bank. Our X-Series products have been installed in some of the most demanding facilities in the country including CrossFit Boxes, Military Bases, Police Stations and Academies, Universities and schools. Proudly Canadian Made equipment with attention to detail. Our equipment is designed and fabricated in house using locally sourced Structural Canadian Steel. All steel parts are processed using the most innovative and advanced manufacturing techniques from CNC machining to Flat Sheet and Tube Laser Cutting. We maximize material efficiency, repeatability of our processes to make our gear as affordable as possible. We have taken a unique design approach to limit the number of welds making our gear more modular and likely to fit into any space while being easy to assemble.
Videos
NA
Manuals
X-Series P4 Power Rack - Assembly Guide
