XTC Gear | X-Series Single Column Freestanding Functional Trainer Tower
XTC Gear | X-Series Single Column Freestanding Functional Trainer Tower
XTC Fitness Inc.
2222 South Sheridan Way
Unit 112
Mississauga ON L5J 2M4
Canada
Choose options
Designed and manufactured in Canada this brilliant, stainless steel constructed functional trainer is packed with potential. The X-Series Functional Trainer offers independent adjustment column. Our heavy-duty frame is constructed using HSS & Stainless Steel offering unrivalled corrosion resistance and an incredible look. Designed for full commercial use while keeping cost and space efficiency as a priority. Each adjustment trolley features high-quality sliders allowing for easier use. This unit is without compromise, offering more adjustment positions than our Athletic Series unit. Users can perform workouts with complete freedom of movement in any direction or plane. Each unit comes standard with one commercial grade 300Lb independent weight stacks.
- Heavy-Duty Canadian HSS & Stainless Steel frame

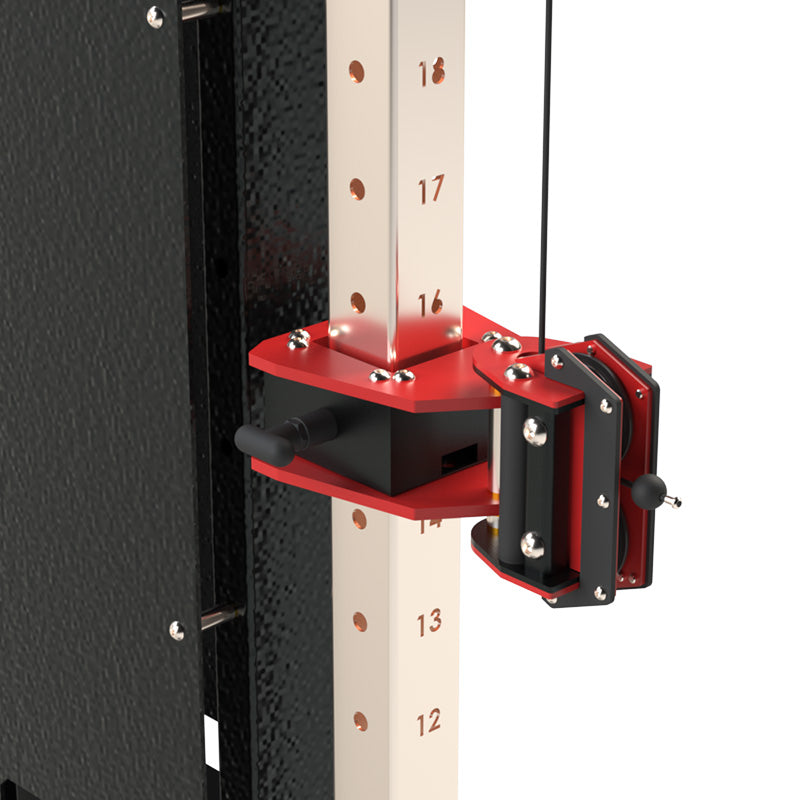

- Independently adjustable high/low pulley system
- Dual Independent Weight Stacks: 160Lbs each (upgradable to 210Lb)
- Stainless Steel Guide Rods
- Stainless Steel Columns with laser cut number markings
- Fenner Drives PowerMax Pulleys and ExerFlex Air Craft grade coated cables
- Laser-cut decorative logos
- RAM Mount Tablet Holder
Component | Warranty |
Frame | Lifetime from manufacture defect |
Pulleys | 5 Year from manufacture defect |
Cable | 5 Year from manufacture defect |
Functional TRAINING
Our Dual Adjustable Pulley system is the finest in home training equipment. Modern industrial design combined with solid Canadian made construction — you can perform endless amount of exercises at home. Engage stabilizing muscles while also targeting major muscle groups just like you would with free-weights without the risks.
The X-Series
Meet the X-Series, XTC Gear's most poplar line of equipment. Tailored for commercial facilities who demand the best, but don't want to break the bank.
Our X-Series products have been installed in some of the most demanding facilities in the country including CrossFit Boxes, Military Bases, Police Stations and Academies, Universities and schools.
Proudly Canadian Made equipment with attention to detail. Our equipment is designed and fabricated in house using locally sourced Structural Canadian Steel.
All steel parts are processed using the most innovative and advanced manufacturing techniques from CNC machining to Flat Sheet and Tube Laser Cutting. We maximize material efficiency, repeatability of our processes to make our gear as affordable as possible.
We have taken a unique design approach to limit the number of welds making our gear more modular and likely to fit into any space while being easy to assemble.
Gear Specs
MODEL |
X-Series Functional Trainer |
SERIES |
X-Series |
STEEL TUBE SIZE |
2" x 3" |
STEEL GAUGE |
11 Gauge |
HOLE SIZES |
3/8" oversized |
HOLE SPACING |
2" |
NUMBERS |
YES |
NUMBER SPACING |
Every Hole |
CHIN-UP BAR |
YES |
WEIGHT CAPACITY |
STOCK 160Lb Upgradable to 210Lb per side. |
CABLE RATIO |
2:1 |
DIMENSIONS |
78 (H) x 52.75 (W) x 34" (D) 84 (H) x 52.75 (W) x 34" (D) 96 (H) x 52.75 (W) x 34" (D) |
RACK WEIGHT |
660Lb |
FRAME WARRANTY |
LIFETIME |
CABLES |
5 YEAR |
PULLEYS |
10 YEAR |
COLOR |
Black, Royal Blue, Red, Lake Blue |
MADE IN |
CANADA |
PRODUCTION ETA |
8-10 WEEKS |
